Azure MCP Tools with Functions and azd: Production Guide

My Fastest Path to Production-Grade Agent Tooling on Azure: MCP + Functions + azd

Frank Garofalo

24 Aug 2026 — 12 min read

2 endpoints changed one architecture decision for my teams: submit and status.

Step 1: Set the target architecture before you write code
Step 2: Choose the security boundary and keep the handler narrow
Step 3: Build the first Azure Functions MCP handler
Step 4: Make long-running work explicit in the tool contract
Step 5: Package infrastructure and deployment with azd
Step 6: Validate the endpoint like an operator, not a demo author
Step 7: Connect the deployed tool to the agent runtime and govern reuse
Step 8: Operate for cost, latency, and failure containment
Step 9: The baseline I’d ship first
Sources & References

That sounds small until you’ve watched a “working” local MCP demo hit a real enterprise boundary and fold on the first timeout, duplicate submission, or missing identity context.

Here’s the shortest credible path I’ve found to production-grade agent tooling on Azure:

put the MCP execution boundary in Azure Functions, which Microsoft positions as managed event-driven compute for cloud workloads Azure Functions
provision and promote the whole thing with azd, because repeatability beats portal archaeology every single time Functions get started
make identity, operation state, retry ownership, and timeout behavior explicit on day one

And yes, Microsoft Foundry (part of the Azure AI agent framework) agents can connect to remote MCP server endpoints through the MCP tool integration, which is exactly why this pattern matters once you leave localhost MCP tool in Foundry.

I’m going to walk this as a hands-on tutorial, the way I’d set the baseline for a delivery team that needs to ship something real this quarter, not a conference demo.

A specific field note before we start: in Q1 I helped a 14-person platform team unwind an agent tool that looked fine in dev until three parallel retries hit the same order-adjustment API and created duplicate downstream work because nobody had defined idempotency ownership.

Step 1: Set the target architecture before you write code

What we are actually building

The target is not “an MCP tool.” The target is a remotely reachable, governable, deployable platform workload that an agent can invoke safely.

The reference path looks like this:

agent or MCP-capable client
remote MCP endpoint
Azure Functions tool handler
approved backend service or data system
optional async worker and operation-state store

That separation matters. Your MCP contract is the agent-facing surface. Your business APIs and data systems stay behind it. That gives you a clean place to enforce validation, identity, authorization, retries, and telemetry.

Microsoft’s guidance for building your own MCP server on Azure lines up with this pattern: remote MCP server on Azure Functions, optional registration through Azure API Center, then connection into Foundry Agent Service build your own MCP server.

The operational questions you answer up front

Before the first handler exists, decide these:

Who is the caller?
What identity does the handler use downstream?
Is the tool read-only, mutating, or privileged?
Who owns retries: client, handler, downstream system, or some split?
What is the timeout contract?
Do you return a final result or an operation reference?
Where is operation state stored?
How do you suppress duplicates?
How do you correlate logs across the call chain?
How does this get promoted from dev to test to prod?

If you skip those, you’re not building a platform capability. You’re building future incident tickets.

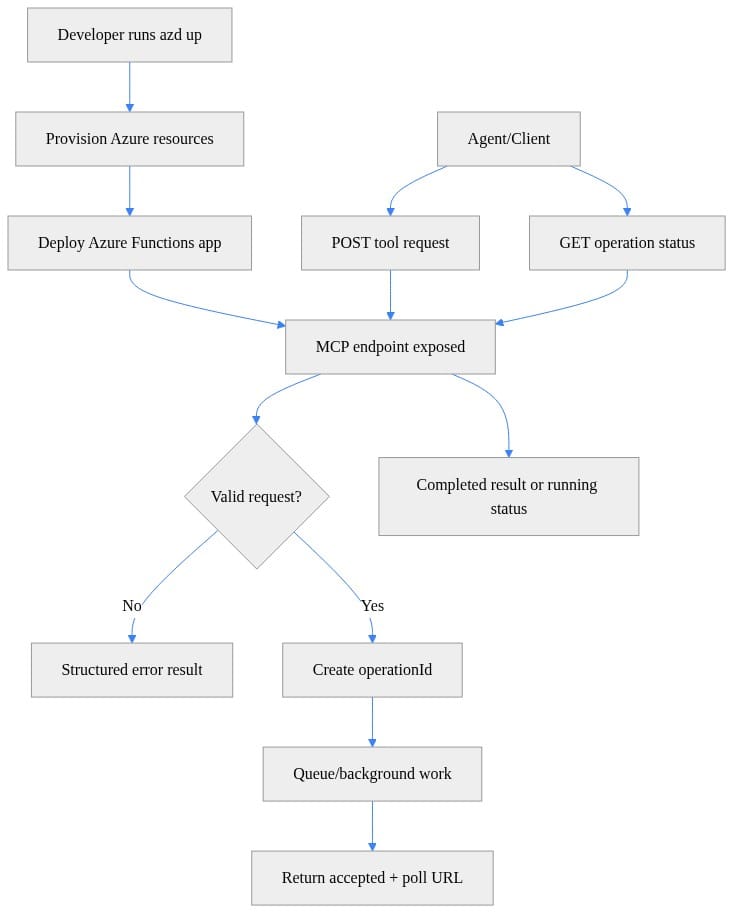

Visualize the baseline flow

I like to get the team aligned on the flow before anybody bikesheds framework details. This diagram is the whole story in one screen: azd provisions, Functions hosts the endpoint, the tool validates, creates an operation, and the client polls for status.

What you should notice: the contract already assumes async submission and status retrieval. That one design choice removes a lot of fake certainty from long-running tool calls.

Step 2: Choose the security boundary and keep the handler narrow

What belongs in the Function handler

A good MCP tool handler does four things well:

validates the input
establishes caller and workload context
invokes an approved backend
returns a contractually defined result

That’s it.

Do not turn the handler into a mini integration platform with ad hoc branching, hidden credentials, and five undocumented downstream calls. The narrower the handler, the easier it is to reason about blast radius.

Treat identity as deployment configuration, not developer convenience

I’m blunt on this one: if your local config file contains environment credentials or your tool arguments include secrets, you’re already off the rails.

Least-privilege access should be assigned per environment. Dev gets dev access. Test gets test access. Prod gets prod access. Different identities, different scopes, same deployment definition.

If your organization needs governed distribution, use the private catalog pattern. Microsoft documents registering the Azure Functions MCP server in Azure API Center before connecting it to Foundry. That’s the right move when multiple teams need a controlled discovery point.

Classify the tool by blast radius

I use three buckets:

read-only: fetch status, summarize approved content, inspect metadata
externally mutating: create, update, submit, approve
privileged: actions that affect money, access, or irreversible business state

As you move right, requirements tighten:

stronger validation
tighter authorization
audit fields
idempotency keys
explicit approval and rollback paths

If a tool can mutate anything important, assume retries will happen and design for them.

Step 3: Build the first Azure Functions MCP handler

Start with one small tool

Don’t start with the monster tool everybody wants. Start with a narrow tool that has:

one clear input
one clear outcome
a backend response you can validate
obvious telemetry

For this tutorial, I’m using a simple summarize-style tool because the shape is easy to understand. The point is the contract, not the business domain.

Implement validation and correlation first

This illustrative handler does two production-grade things immediately:

validates input.text before touching anything downstream
emits a correlation ID and returns it in both headers and payload

It also returns 202 Accepted with an operationId and pollUrl, which is exactly the right contract for work that may outlive the request window.

# Minimal Azure Functions MCP tool handler with validation, correlation IDs, and async submission contract
import json, uuid
import azure.functions as func

app = func.FunctionApp(http_auth_level=func.AuthLevel.FUNCTION)

@app.route(route="mcp/tools/summarize", methods=["POST"])
def summarize(req: func.HttpRequest) -> func.HttpResponse:
    correlation_id = req.headers.get("x-correlation-id", str(uuid.uuid4()))
    try:
        body = req.get_json()
        text = body["input"]["text"]
        if not isinstance(text, str) or not text.strip():
            raise ValueError("input.text must be a non-empty string")
        operation_id = str(uuid.uuid4())
        result = {"ok": True, "status": "accepted", "operationId": operation_id,
                  "pollUrl": f"/api/operations/{operation_id}", "correlationId": correlation_id}
        return func.HttpResponse(json.dumps(result), status_code=202, mimetype="application/json",
                                 headers={"x-correlation-id": correlation_id})
    except Exception as ex:
        error = {"ok": False, "error": {"code": "InvalidRequest", "message": str(ex)},
                 "correlationId": correlation_id}
        return func.HttpResponse(json.dumps(error), status_code=400, mimetype="application/json",
                                 headers={"x-correlation-id": correlation_id})

What you should notice: the handler does not pretend the work is complete. It validates fast, creates an operation reference, and returns a structured response the client can reason about.

Standardize responses early

Teams get sloppy here. One handler returns raw strings, another returns arbitrary JSON, a third leaks stack traces. Then six weeks later they wonder why clients are brittle.

A tiny shared helper for correlation-aware success and error payloads pays off fast. I use patterns like this so every tool returns a predictable shape.

# Shared helper for structured MCP-style error payloads and correlation-aware responses
import json
import uuid
import azure.functions as func

def response(payload: dict, status_code: int = 200, correlation_id: str | None = None) -> func.HttpResponse:
    cid = correlation_id or str(uuid.uuid4())
    return func.HttpResponse(
        json.dumps({**payload, "correlationId": cid}),
        status_code=status_code,
        mimetype="application/json",
        headers={"x-correlation-id": cid},
    )

def error(code: str, message: str, status_code: int = 400, correlation_id: str | None = None) -> func.HttpResponse:
    return response({"ok": False, "error": {"code": code, "message": message}}, status_code, correlation_id)

What you should notice: the response helper bakes in correlation consistently. The error helper keeps failure payloads structured instead of improvising them per function.

Why I prefer remote MCP over local stdio for the real thing

A local stdio server is fine for rapid prototyping. It is not the production execution boundary.

Remote hosting gives you:

deployable isolation
environment-specific identity
observable HTTP behavior
policy and registration options
promotion through a repeatable pipeline

That is why Azure Functions is the right landing zone for this pattern, and it’s also why I wrote more about this control-plane shift in Azure Functions Just Redefined the Agent Control Plane.

Step 4: Make long-running work explicit in the tool contract

Pick one of three operation models

Every tool should be classified before implementation:

synchronous completion
asynchronous submission
status retrieval

If work can’t reliably finish inside the invocation window, stop pretending it can. Return an operation reference.

This is where a lot of agent tooling goes sideways. The model is fast, the demo is smooth, and then the backend takes 18 seconds, retries twice, and the whole thing becomes ambiguous.

Add a status endpoint

Once you return an operationId, you need a stable polling contract. This illustrative status endpoint shows the shape.

# Operation status endpoint with idempotent polling semantics for asynchronous MCP tool execution
import json
import azure.functions as func

app = func.FunctionApp(http_auth_level=func.AuthLevel.FUNCTION)

@app.route(route="operations/{operationId}", methods=["GET"])
def get_operation(req: func.HttpRequest) -> func.HttpResponse:
    operation_id = req.route_params["operationId"]
    state = {"status": "succeeded", "result": {"summary": "Production-ready agent tooling on Azure."}}
    payload = {"ok": True, "operationId": operation_id, **state}
    return func.HttpResponse(json.dumps(payload), status_code=200, mimetype="application/json")

What you should notice: polling is idempotent. The client can ask again without creating duplicate work. That is exactly the behavior you want under retry pressure.

Define retry ownership

This is one of the least glamorous and most important decisions in the whole stack.

Document:

which client-visible failures may be retried by the caller
which downstream failures may be retried by the handler
where duplicate suppression happens
whether mutating requests require an idempotency key

For mutating tools, I require:

an idempotency key on submission
persisted operation state outside process memory
terminal states like succeeded, failed, cancelled, expired
authorization checks on status retrieval tied to the original workload context

And yes, you should explicitly test:

duplicate delivery
timeout before backend completion
partial downstream completion
process restart before status read
malformed input
expired authorization

If you want a deeper playbook for that part, Azure Agent Resilience Testing for Production Readiness covers the failure drills I actually run.

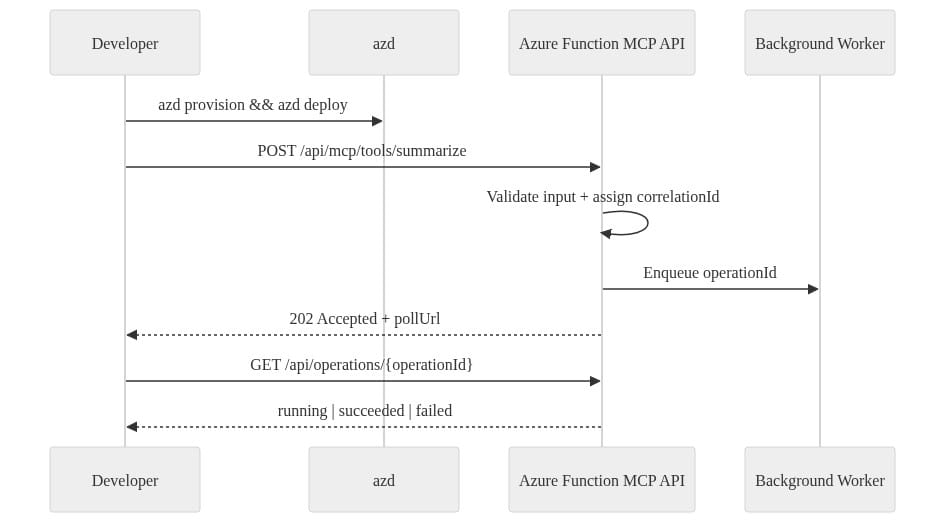

Sequence the lifecycle

This sequence diagram is the contract I want engineers, security, and platform ops to all agree on before rollout.

What you should notice: the Function API does fast validation and handoff, while background work owns completion. That separation is what keeps latency pressure from corrupting your contract.

Step 5: Package infrastructure and deployment with azd

Put infra and app lifecycle in one project

If your Function app, storage, settings, outputs, and deployment workflow live in five disconnected scripts, the system will drift.

I want one azd project that defines:

the Function app
dependent Azure resources
environment naming
configuration bindings
deployment workflow

This is the minimum project wiring.

# azd project configuration wiring infra and app deployment together
name: mcp-functions-azd
metadata:
  template: mcp-functions-quickstart
services:
  api:
    project: .
    language: python
    host: function
infra:
  provider: bicep

What you should notice: azd knows there is an app service called api, it’s Python, it’s hosted as a Function, and infra is managed with Bicep. Clean and boring is the goal.

Provision the Azure resources

For a first baseline, you need the Function app and its supporting storage. This Bicep example shows the shape.

// Azure Functions resources for an MCP endpoint with storage and application settings
param location string = resourceGroup().location
param appName string
param storageName string

resource storage 'Microsoft.Storage/storageAccounts@2023-05-01' = {
  name: storageName
  location: location
  sku: { name: 'Standard_LRS' }
  kind: 'StorageV2'
}

resource plan 'Microsoft.Web/serverfarms@2023-12-01' = {
  name: '${appName}-plan'
  location: location
  sku: { name: 'Y1', tier: 'Dynamic' }
  kind: 'functionapp'
}

resource app 'Microsoft.Web/sites@2023-12-01' = {
  name: appName
  location: location
  kind: 'functionapp,linux'
  properties: {
    serverFarmId: plan.id
    siteConfig: {
      appSettings: [
        { name: 'AzureWebJobsStorage', value: 'DefaultEndpointsProtocol=https;AccountName=${storage.name};EndpointSuffix=${environment().suffixes.storage};AccountKey=${storage.listKeys().keys[0].value}' }
        { name: 'FUNCTIONS_WORKER_RUNTIME', value: 'python' }
      ]
    }
  }
}

What you should notice: this is enough to express the app plan, storage, and core app settings. In a real delivery, I’d extend this with identity, app settings from environment parameters, and role assignments per environment.

Emit outputs that make validation easy

I always output the function host and tool URL. If your deployment succeeds but nobody can discover the endpoint cleanly, the workflow still stinks.

// Outputs that make azd verification and endpoint discovery straightforward
param appName string

resource app 'Microsoft.Web/sites@2023-12-01' existing = {
  name: appName
}

output functionAppName string = app.name
output mcpBaseUrl string = 'https://${app.properties.defaultHostName}/api'
output summarizeToolUrl string = 'https://${app.properties.defaultHostName}/api/mcp/tools/summarize'

What you should notice: the outputs give you a predictable base URL and tool URL, which makes smoke testing and pipeline verification much easier.

Use the same definition across dev, test, and prod

Here’s the rule: same deployment definition, different environment values and approvals.

Do not rebuild prod manually in the portal because “it was faster.” It never is. It just delays the pain.

azd is the right workflow here because it gives you repeatable provisioning and deployment for Functions without inventing a custom wrapper script for everything.

Step 6: Validate the endpoint like an operator, not a demo author

Run a deployment and smoke test

After provisioning and deployment, hit the endpoint with a known payload and verify you get the async contract back.

This PowerShell example is exactly the kind of azd-oriented validation I like in a delivery repo: select environment, check required values, provision, deploy, call the tool, verify an operationId exists.

# azd-oriented validation and deployment workflow with endpoint verification
param(
  [string]$Environment = "dev",
  [string]$ToolPath = "/api/mcp/tools/summarize"
)

$ErrorActionPreference = "Stop"
azd env select $Environment | Out-Null
$envVars = azd env get-values | Out-String
if ($envVars -notmatch "AZURE_LOCATION" -or $envVars -notmatch "AZURE_SUBSCRIPTION_ID") { throw "Missing required azd environment values." }

azd provision
azd deploy

$baseUrl = (azd env get-value SERVICE_API_URI).Trim()
if (-not $baseUrl) { throw "SERVICE_API_URI is not set." }

$headers = @{ "x-correlation-id" = [guid]::NewGuid().ToString() }
$body = @{ input = @{ text = "Ship MCP tools safely on Azure." } } | ConvertTo-Json -Depth 5
$response = Invoke-RestMethod -Method Post -Uri "$baseUrl$ToolPath" -Headers $headers -ContentType "application/json" -Body $body
if (-not $response.operationId) { throw "MCP endpoint verification failed." }
$response | ConvertTo-Json -Depth 5

What you should notice: the script verifies the environment and the endpoint, not just the build. That’s the difference between CI theater and an actual deployment check.

What I verify before I call it “good”

My short list:

endpoint resolves
authentication path is correct for the environment
payload validation works
correlation ID is echoed back
202 Accepted comes back for async work
operationId and pollUrl are present
status endpoint returns a stable state model
logs can be correlated across the request path

If any of those are fuzzy, I don’t promote.

Step 7: Connect the deployed tool to the agent runtime and govern reuse

Register and connect the remote MCP endpoint

Once the endpoint is deployed and behaving, connect it to the consuming agent runtime through MCP. Microsoft Foundry supports remote MCP endpoints for agent tool access, which is the bridge from “service endpoint” to “agent-usable tool.”

That’s also the point where governance starts to matter more than code.

Use a toolbox or catalog approach when multiple agents need the same tool

This is one of the smarter patterns in the current guidance: treat tools as reusable governed assets instead of embedding credentials and tool logic independently into every agent.

Microsoft’s OpenAPI tool guidance describes a toolbox model that centralizes credential management, versioning, and policy enforcement through a managed MCP endpoint OpenAPI toolbox guidance.

That aligns with how I want enterprises to scale this:

one governed tool surface
multiple consuming agents
centralized policy
versioned contracts
controlled promotion

If you’re also thinking about front-door governance and policy mediation, this is where Azure API Management AI Gateway for Enterprise Governance becomes relevant.

Promote versions deliberately

My promotion pattern is simple:

deploy a compatible revision
validate contract behavior in the next environment
update registration under change control
preserve rollback to the prior version

Never make tool registration an undocumented side effect of deployment. Version it. Track it. Roll it back cleanly.

Step 8: Operate for cost, latency, and failure containment

Instrument the invocation path

Every invocation should log at least:

tool name
contract version
environment
correlation ID
outcome category
downstream dependency
elapsed time
retry count

That’s the minimum set I need when something goes wrong at 2:13 AM.

Bound concurrency and time

Agent-driven traffic can create ugly downstream load patterns fast. Set concurrency and timeout policies based on backend capacity, not wishful thinking.

If the backend cannot tolerate burst fan-out, your Function handler should not amplify it.

This is one of the reasons I keep hammering on explicit async contracts. They let you shape work instead of forcing everything through one fragile synchronous path.

Run failure drills before production tells you the answer

I want deliberate tests for:

unavailable dependency
malformed input
expired authorization
duplicate submission
status lookup after restart
timeout during downstream execution

That’s where the real bugs live, not in the happy path.

My production-readiness checklist

Before I let a team call this “enterprise-ready,” I want named owners for:

tool contract
identity and authorization model
deployment pipeline
environment promotion
observability and correlation
incident response
retirement and version deprecation

If nobody owns retirement, stale tools will outlive the systems they were built for. I’ve seen that movie too many times.

Step 9: The baseline I’d ship first

If you want the shortest path that I’d actually trust, it looks like this:

Azure Functions hosts the remote MCP endpoint
one narrow tool with strong validation
correlation IDs on every request and response
async submission contract for anything non-trivial
persisted operation state
status endpoint with idempotent polling
azd project for infra plus app deployment
isolated dev, test, prod environments
governed registration and promotion path
failure drills before broad rollout

That’s the difference between “look, the agent called a tool” and “we can support this in production without crossing our fingers.”

If you’ve shipped MCP tooling on Azure already, where does this pattern break in your environment: identity, long-running state, or promotion discipline?

#AzureFunctions #AIAgents #DataArchitecture

Sources & References

Try it yourself

Run this tutorial as a Jupyter notebook: Download runbook.ipynb (26 cells, 25 KB).

On this page
